EV charger

Charge Amps Luna

An ISO 15118 hardware-ready home charger with a charging capacity of up to 22 kW.

EV charger

Charge Amps Luna

An ISO 15118 hardware-ready home charger with a charging capacity of up to 22 kW.

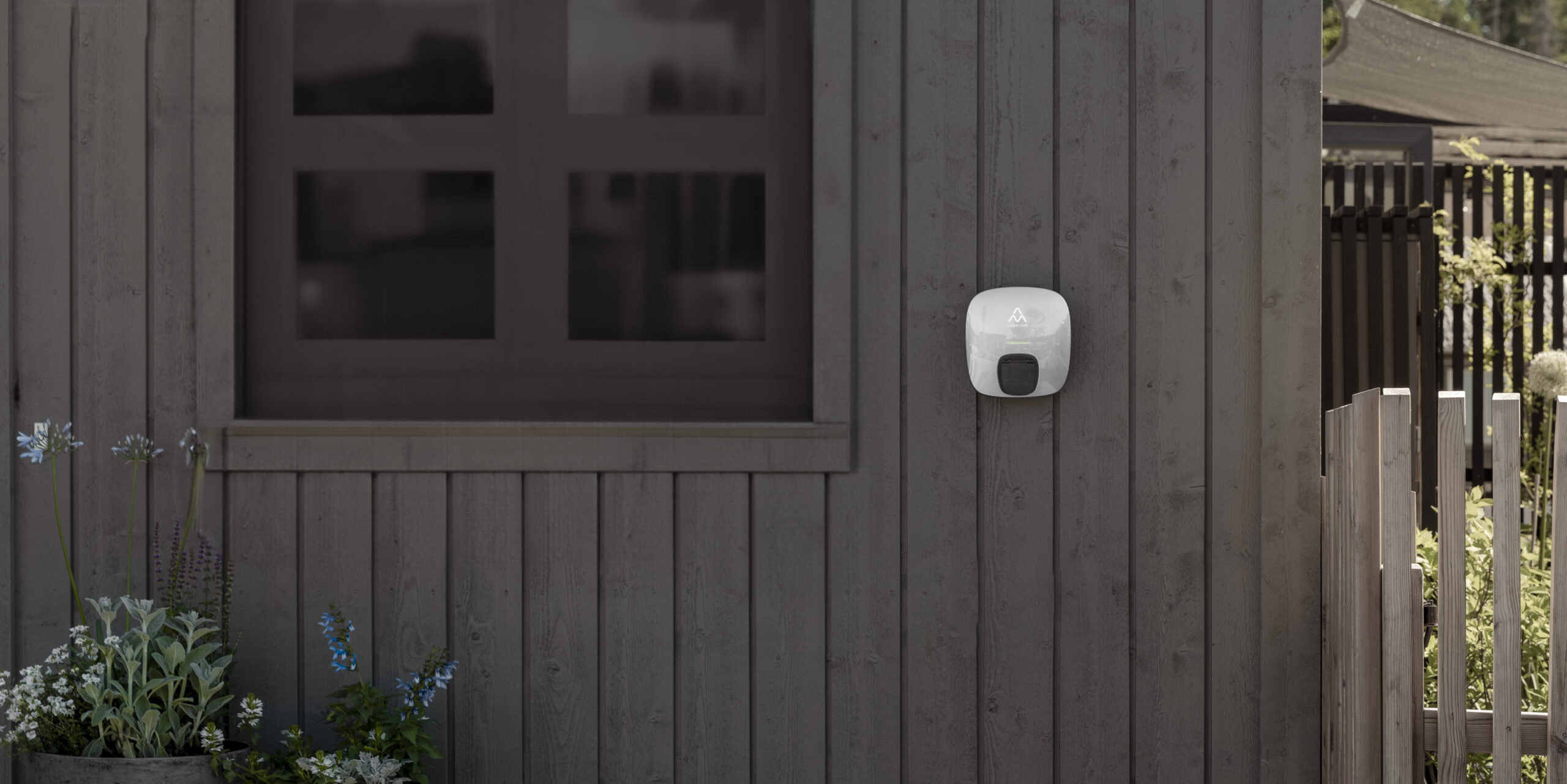

An optimal home charging solution

Charge Amps Luna naturally integrates into your home, ensuring it stays connected to your everyday needs. Whether you wish to charge your car using power from the grid or solar power, you can be confident that your household electric equipment will continue running as usual. This is made possible thanks to the software’s load-balancing function, ensuring a consistent power supply to all devices.

CONNECTED TO YOUR EVERYDAY NEEDS
  • Charging up to 22 kW
  • Futureproof with ISO 15118 hardware
  • Effortless installation
  • Seamless configuration
  • Connected via WiFi or 4G
  • Available in different colours

Future ready

The charger is designed to meet future needs, enabling features like plug-and-charge (PnC) and vehicle-to-grid (V2G)*. Charge Amps Luna not only adds convenience but also simplicity, enabling you to identify your car as authorised to use the charger and get real-time infor-mation on the EV’s battery status.





*The charger is equipped with hardware that supports ISO 15118, ensuring that the specified features will be activated once they are officially launched.

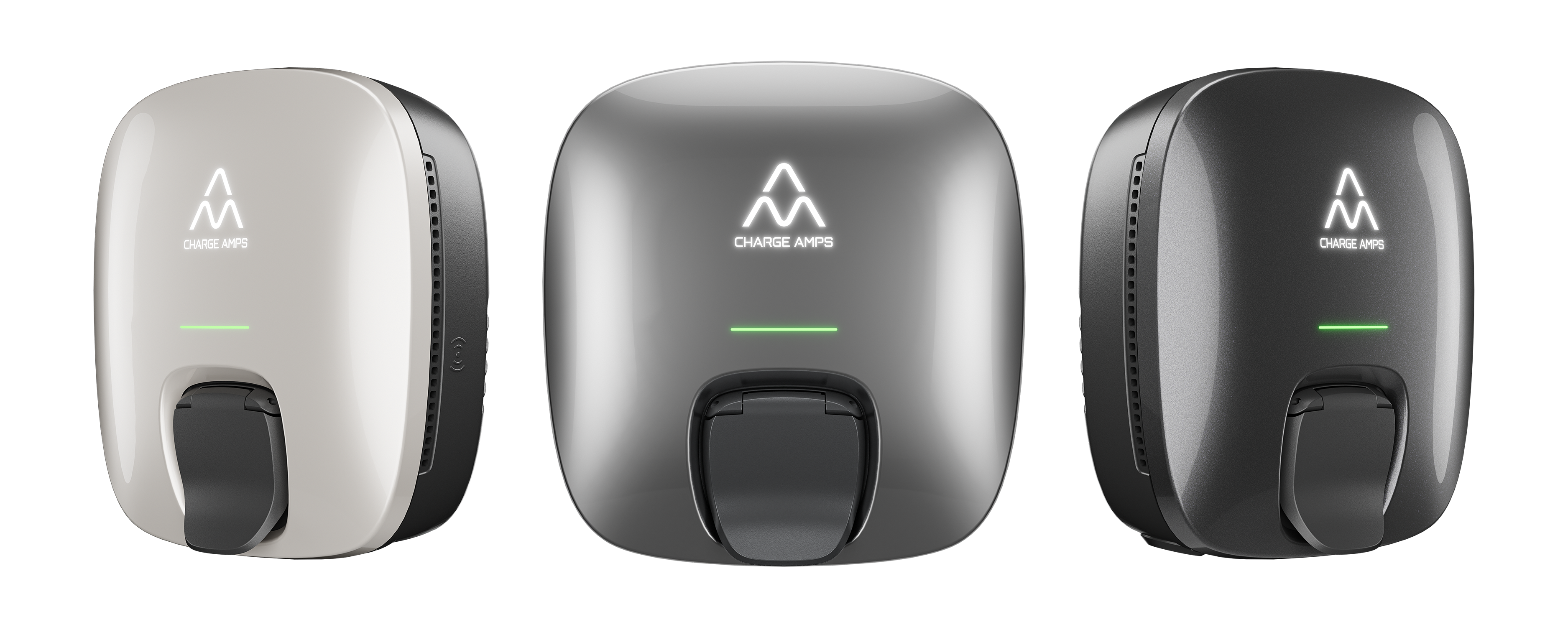

Available in different colors to match your home

The Charge Amps Luna comes in Silver as standard and there are Dark Grey and Pearl White fronts that can be purchased to suit your style and home. Enjoy both functionality and stylish design.



Stay connected. Stay ahead.

Charge Amps Luna is connectable by 4G LTE or WiFi,
and accessible through Charge Amps Cloud and
Charge Amps App. Remotely turn on and off your charger, see your charging status, and schedule your charging to when the electricity price is at its lowest. History is available in the cloud for reporting and statistics, and we send out over-the-air updates to ensure the charger always has the latest software and all features.

Making installation truly simple

Installation and configuration are done easily and smoothly. The straightforward installation and configuration process requires just a few screws and a minimum time. Cabling is easily pulled in from the underneath or back wall. The configuration is done rapidly by connecting the Installer App via Bluetooth

Read more

Product information

Technical specification
Part number: 131462
Charging current: 6–32 A, 1-3 phase
Voltage: 230/400 V
Operating temperatures: -35°C to +45°C
Charging standard: Mode 3
Identification: RFID
Connectivity: Connectivity WiFi, 4G LTE** , Bluetooth
Communication protocol: OCPP 1.6J
Fault current protection: Built in RCD Type-B complying with IEC 60947-2. AC: 30mA, DC: 6mA.
ISO 15118 Hardware ready. Full functionality requires a software update which will be released in the future.
Metering: 3-phase voltage, current and power
IP rating: IP 54
IK rating: IK 10
Socket: Type 2, 22 kW
Dimensions (W × D × H): 210 x 80 x 220 mm
Weight: 1,3 kg
SIM card: Built-in
Incoming power cable, conductor dimensions Up to 6 mm2





*The charger is equipped with hardware supporting ISO 15118, ensuring that the specified features will be activated once they are officially launched. To read more visit our webpage chargeamps.com/product/charge-amps-luna
**Coverage via the LTE network is required for 4G connectivity to work. Two years of 4G connectivity (LTE) is included. After this period, you can continue using the service by activating it at a monthly cost. All details about the service will be available on our website when you choose to extend your connectivity
