Charge Amps Flex


Charge Amps Flex

Find a reseller

Do you want to get in touch with a reseller?

Are you thinking about installing a charging station for an electric car? Contact one of our certified installers.


Charge Amps Certified Installers

Empower your charging infrastructure for future EV charging

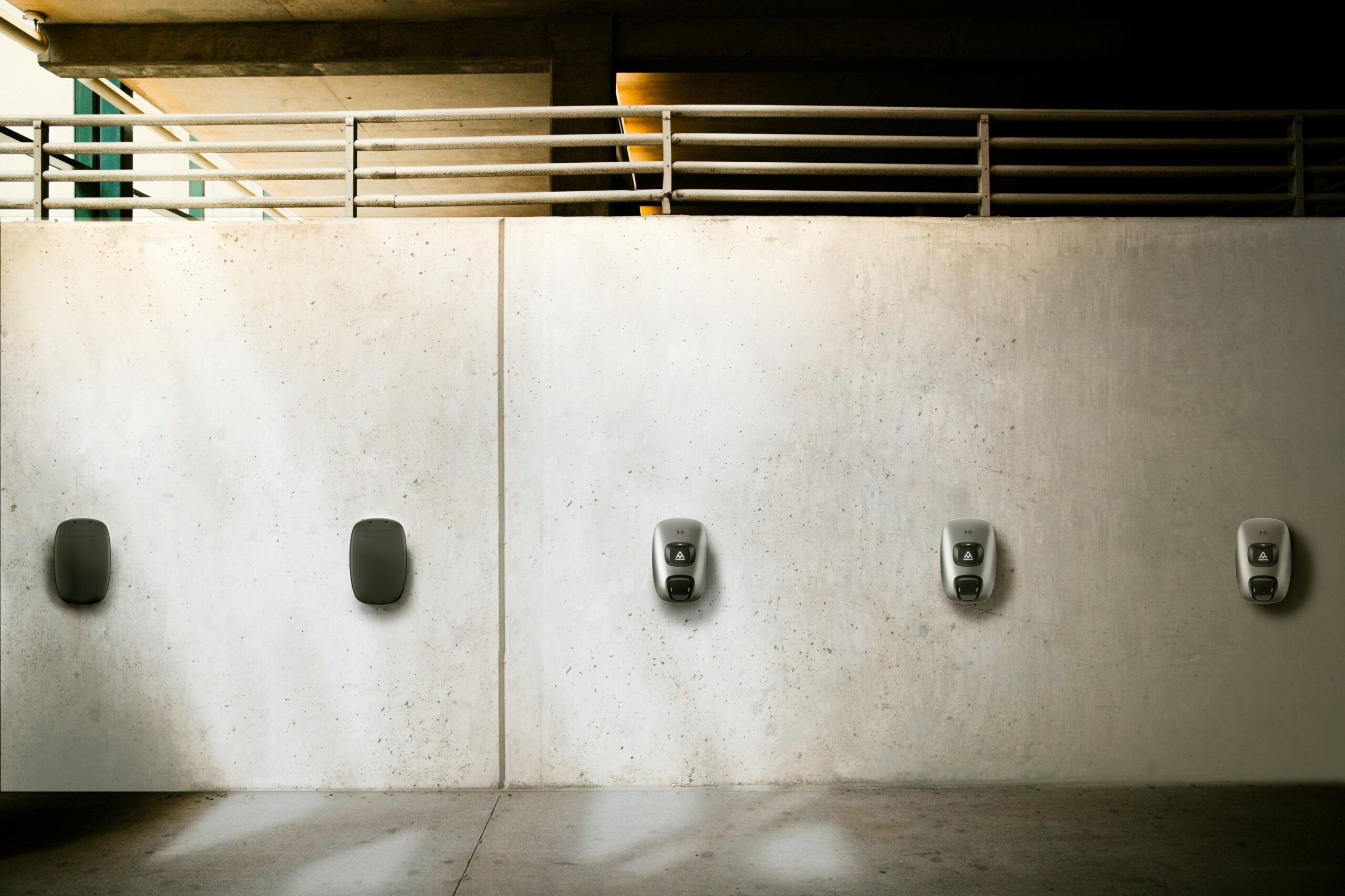

Charge Amps Flex enables ultimate flexibility for housing cooperatives and public parking lots in preparing the charging infrastructure. Streamline the process by setting up electrical installations and cable routing in advance. With a future increased demand for extended charging points with Charge Amps Flex, you can ensure future-proofing of the parking installation with pre-installed surfaces for several more charging stations. Adding chargers as needed, without redoing extra cable routing, is a future-ready solution that significantly simplifies and reduces installation costs. Skip retrofitting at a later stage and achieve significant cost savings when installing Charge Amps Flex.


As the demand for EV charging solutions continues to surge with the growing number of EV vehicles, being prepared is a must. Buildings equipped with pre-installed charging infrastructure ready to meet future demands are an investment. Charge Amps Flex ensures your charging solution is future-proof and sets you up for a more electrifying future.

  • Cost-effective as you initially prepare for future demands
  • Future-proof, ensuring the increased need for chargers to be ready

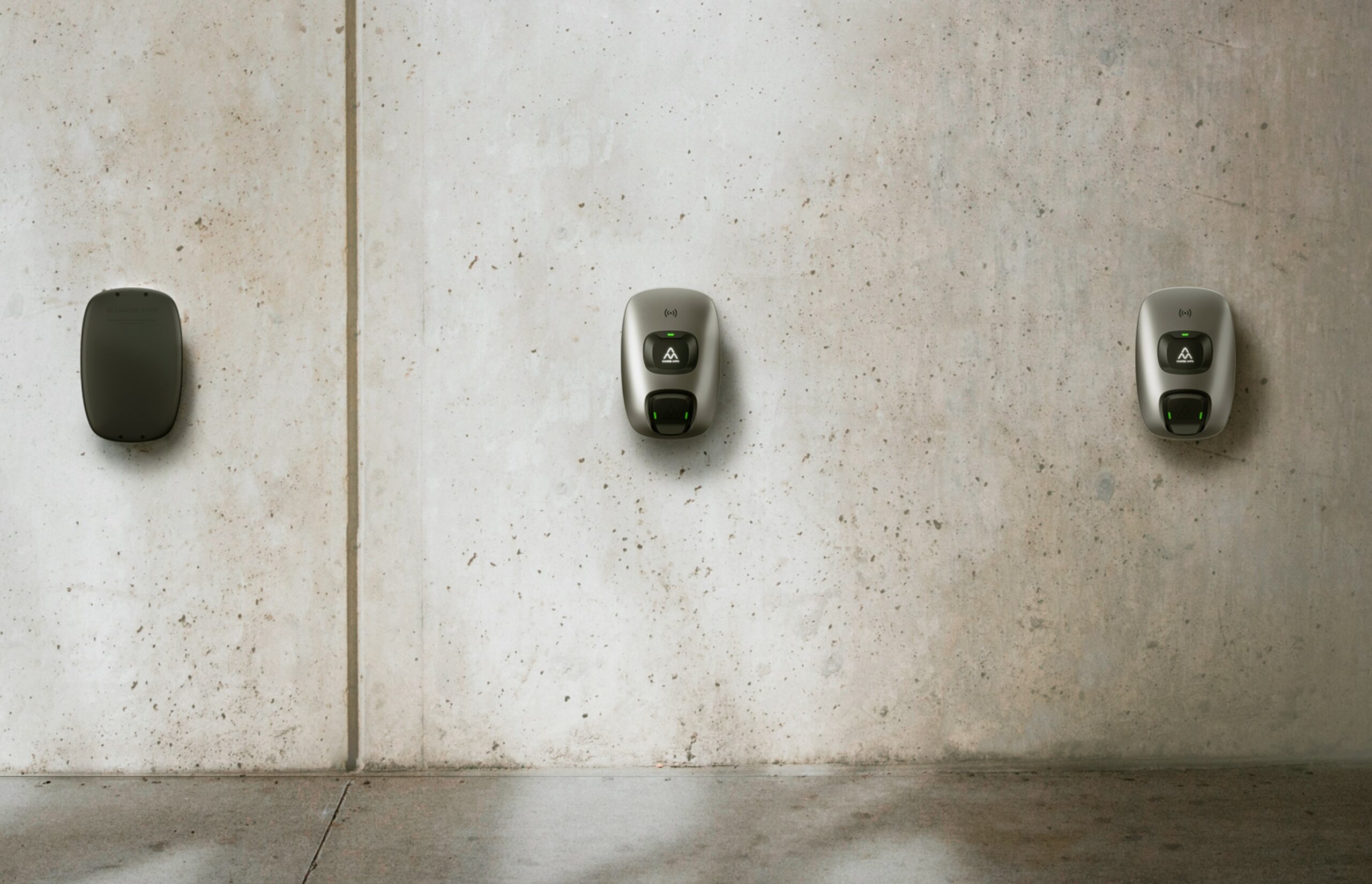

This is how Charge Amps Flex works

1. Preinstall

Pre-install as many charging points as needed by mounting Charge Amps Dawn Base, containing a backplate and placeholder, at the actual charging point. *

2. Add Charge Amps Dawn Core

As more chargers are needed, add Charge Amps Dawn Core, which consists of the actual charging unit and the charger’s front. *

3. Start Charging

Start charging your EV with Charge Amps Dawn.

*Installation and configuration need to be done by an authorised installer.

Read more

Product information

Technical specification
Part number: Base: 131391
Core: 131392
Charging current: 6–32 A or 1-3 phase
Voltage: 230/400 V
Operating temperatures: -35°C to +45°C
Identification: RFID
Charging standard: Mode 3
Connectivity: WiFi, 4G LTE-M, Bluetooth, LAN applicable with separate module
Communication protocol: OCPP 1.6J
Fault current protection: Built in RCD Type-B complying with IEC 60947-2. AC: 30mA, DC: 6mA
Metering: MID, 3-phase voltage, current and power
IP rating: IP 54
IK rating: IK 10
Socket: Type 2, 22 kW
Dimensions (W × D × H): 250 × 145 × 378 mm
Weight: 2.6 kg
SIM card: Included in the charger
