Charge Amps Pole Mount for easy outdoor installation of a charging station.

Below you can read more about and find the Pole Mount that suits your needs and charging box.

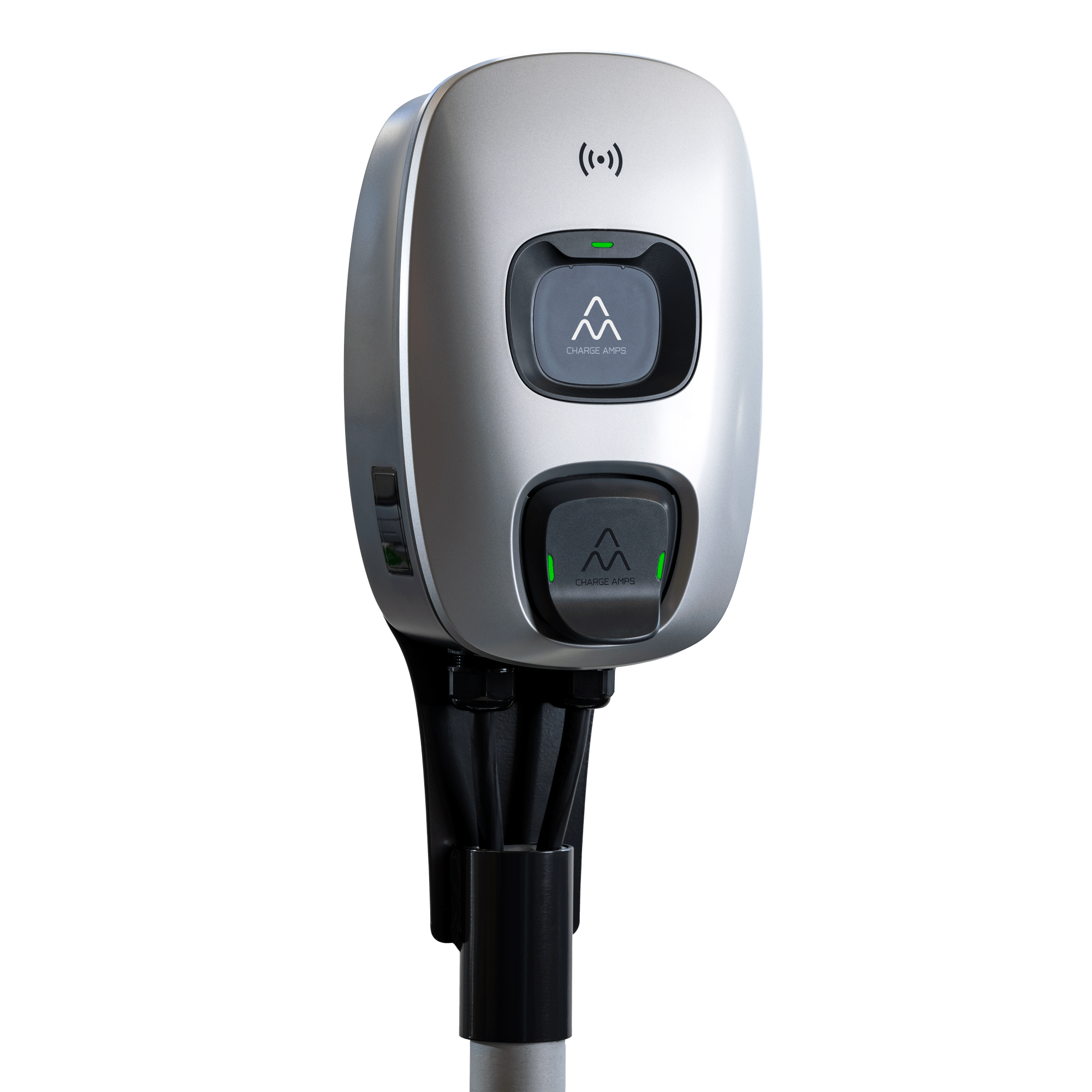

For Charge Amps Dawn

Manufactured from quality aluminium and designed in Sweden, Charge Amps Pole Mount is an aesthetic match for Charge Amps charging stations. Designed for easy installation of one or two Charge Amps Dawn. Wiring is discretely hidden in the pole and its inner detachable DIN rail simplifies installation.

Charge Amps Pole Mount

Charge Amps Pole Mount allows you to locate your charging station on a standard 60 mm diameter pole.

Pole mount for charging station, Charge Amps Halo

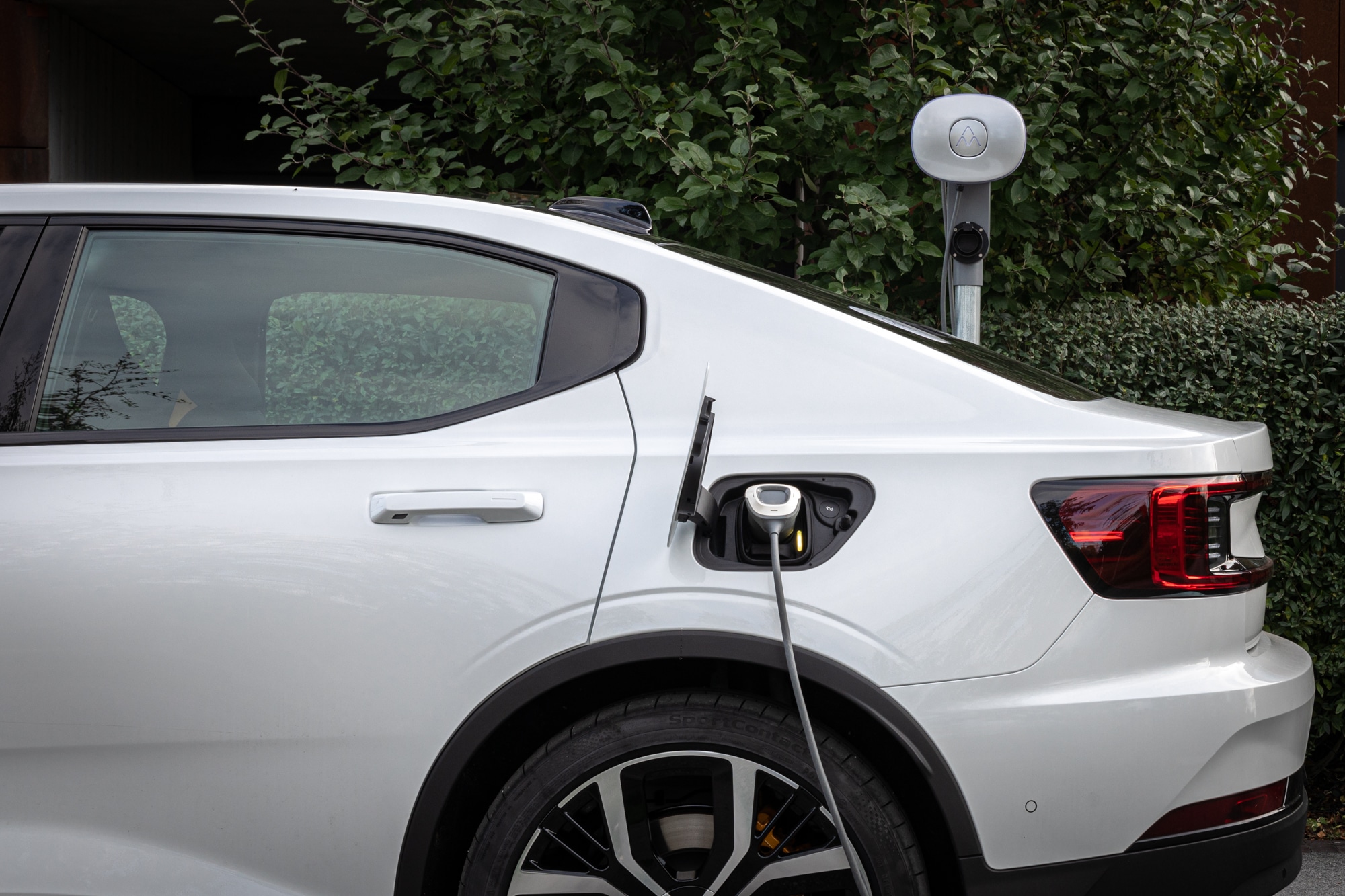

Pole Mount

For Charge Amps Halo

Charge Amps Aura Pole Mount, and a electric car
Pole Mount

For Charge Amps Aura

Pole Mount

For two Charge Amps Aura

ADVANTAGES OF CHARGE AMPS POLE MOUNT
  • IP 44
  • Can be installed on a 60 mm pole
  • Terminal block included, WPD 501 2X25/2X16 1XGN/3XGY/1XBL
    (Only applies to Charge Amps Dual Pole Mount for Charge Amps Aura)

Next Green Poleplate for Charge Amps Dawn

Charge Amps has partnered up with Next Green in Sweden to offer a wider range of mounting solutions tailored to your needs. The Next Green Poleplate for Charge Amps Dawn is a unique product designed specifically for the Charge Amps Dawn and is installed on a 60mm pole. The cables run inside the pole and are connected from underneath to the Charge Amps Dawn.

If you have a mounting solution from Next Green and need assistance with installation or wish to file a product complaint, please contact Next Green directly at +46 250 50 39 90 or info@nextgreen.se. For more information, visit nextgreen.se/en/

READ MORE

Product information

Technical specifikation

Charge Amps Pole Mount for Charge Amps Dawn

Article number: 131025 Charge Amps Dawn Pole Mount

130994 Charge Amps Dawn Dual Pole Mount

Dimensions (B x D x H): 188 × 215 × 512 mm
Product materials: Recycled aluminium, plastic
Mounting: Can be installed on standard 60 mm diameter pole
Max cable area: 5G16 mm²

Charge Amps Pole Mount for Charge Amps Halo

Part number: E2445601 Art. 130053
Weight: 2.5 kg
Dimensions (W x D x H): 310 x 100 x 100 mm. Adds 300 mm height to the pole.
Product materials: Powder coat over galvanized steel





Charge Amps Pole Mount for Charge Amps Aura

Part number: E2445545 Art. 101227
Weight: 2 kg
Dimensions (B x D x H): 465 x 303 x 81 mm
Product materials Stainless steel



Charge Amps Pole Mount for two Charge Amps Aura

Part number: E2445603 Art. 130090
Weight: 3 kg
Dimensions (W x D x H): 133 x 137 x 380 mm
Product materials Stainless steel
